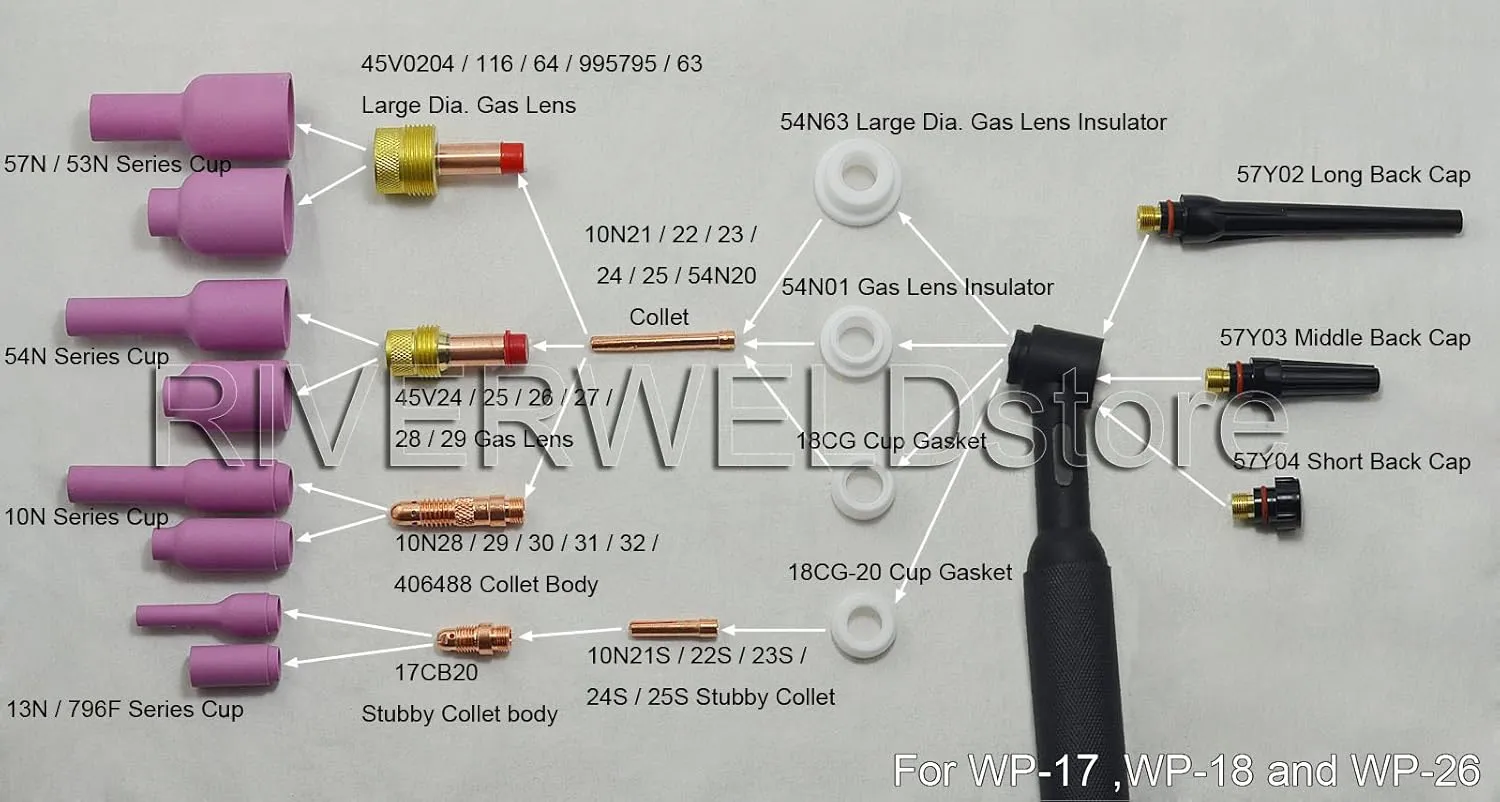

- This Studdy Gas lens & Collet kits fits all 17 & 26 series air cooled torches and 18 series water cooled torches, including the Lincoln PTA-17, PTA-18 and PTA-26 torches,Miller Diamondback DB17,DB18 and DB 26 torches, along with the Weldcraft WP-17, WP-18
- Each size for Insulated Glass Cup ( #5 5/16" ) ( #6 3/8" ) (#7 7/16" ) ( #8 1/2" ) ( #10 5/8").
- Each size for TIG Stubby Gas Lens Collet Body 17GL040 ( 0.040" & Ø1.0mm ), 17GL116 ( 1/16" & Ø1.6mm ), 17GL332 ( 3/32" & Ø2.4mm ), 17GL18 (1/8" & Ø3.2mm ) and TIG collet 10N22S ( 0.040" & Ø1.0mm ) , 10N23S ( 1/16" & Ø1.6mm ) , 10N24S ( 3/32" & Ø2.4mm ) ,10N25S (1/8" & Ø3.2mm )
- Each size for Special TIG Gas lens insulator and TIG back cap 57Y02 Long, 57Y03 Medium, 57Y04 Short Back Cup
- 16pcs Temperature Resistant O-rings

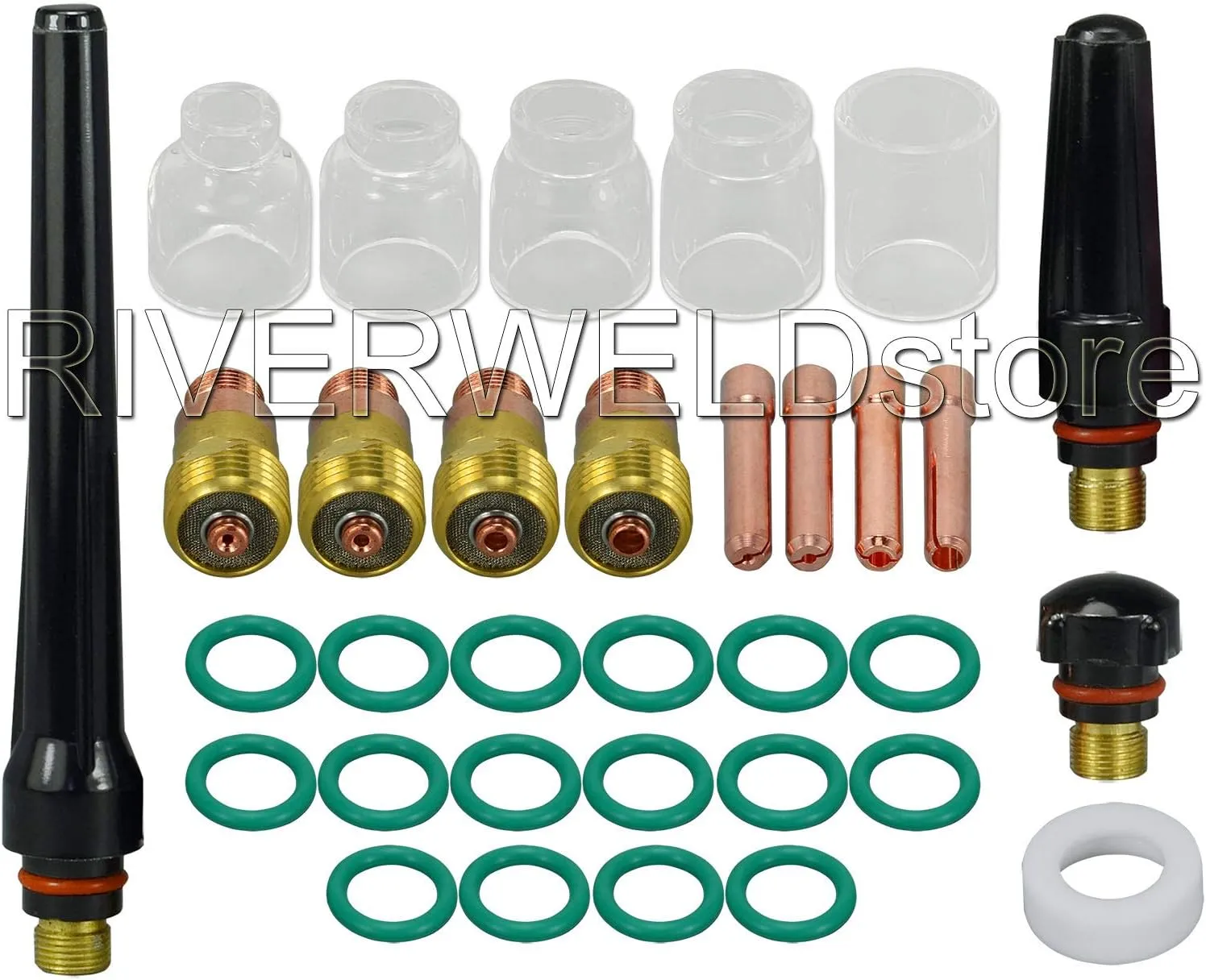

Packing Listing:
1 x Insulated Glass Cup #5 ( 8.0mm x 25mm )
1 x Insulated Glass Cup #6 ( 9.5mm x 25mm )
1 x Insulated Glass Cup #7 ( 11.0mm x 25mm )
1 x Insulated Glass Cup #8 ( 12.5mm x 25mm )
1 x Insulated Glass Cup #10 ( 16.0mm x 25mm )
1 x 57Y02 Long Back Cup
1 x 57Y03 Medium Back Cup
1 x 57Y04 Short Back Cup

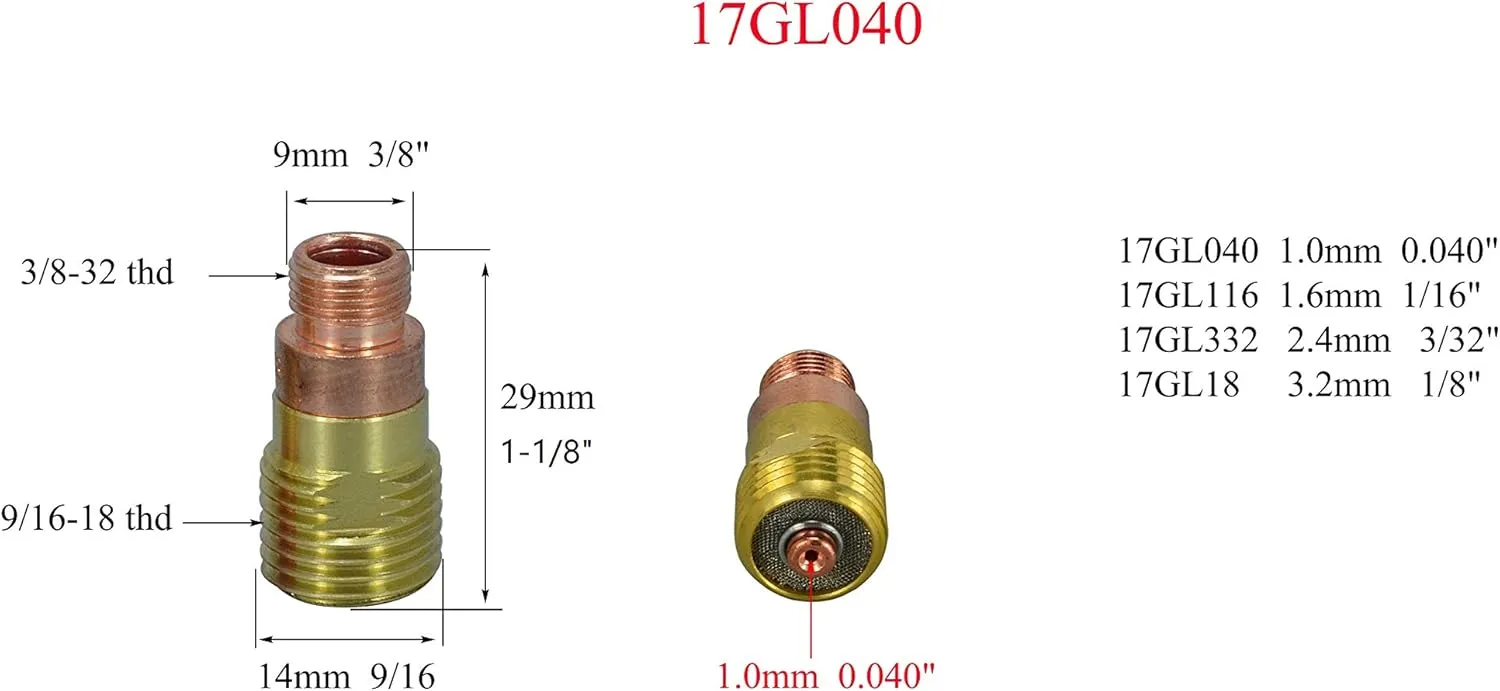

1pcs TIG Stubby Gas Lens 17GL040 ( Ø1.0mm x 29mm )
1pcs TIG Stubby Gas Lens 17GL116 ( Ø1.6mm x 29mm )

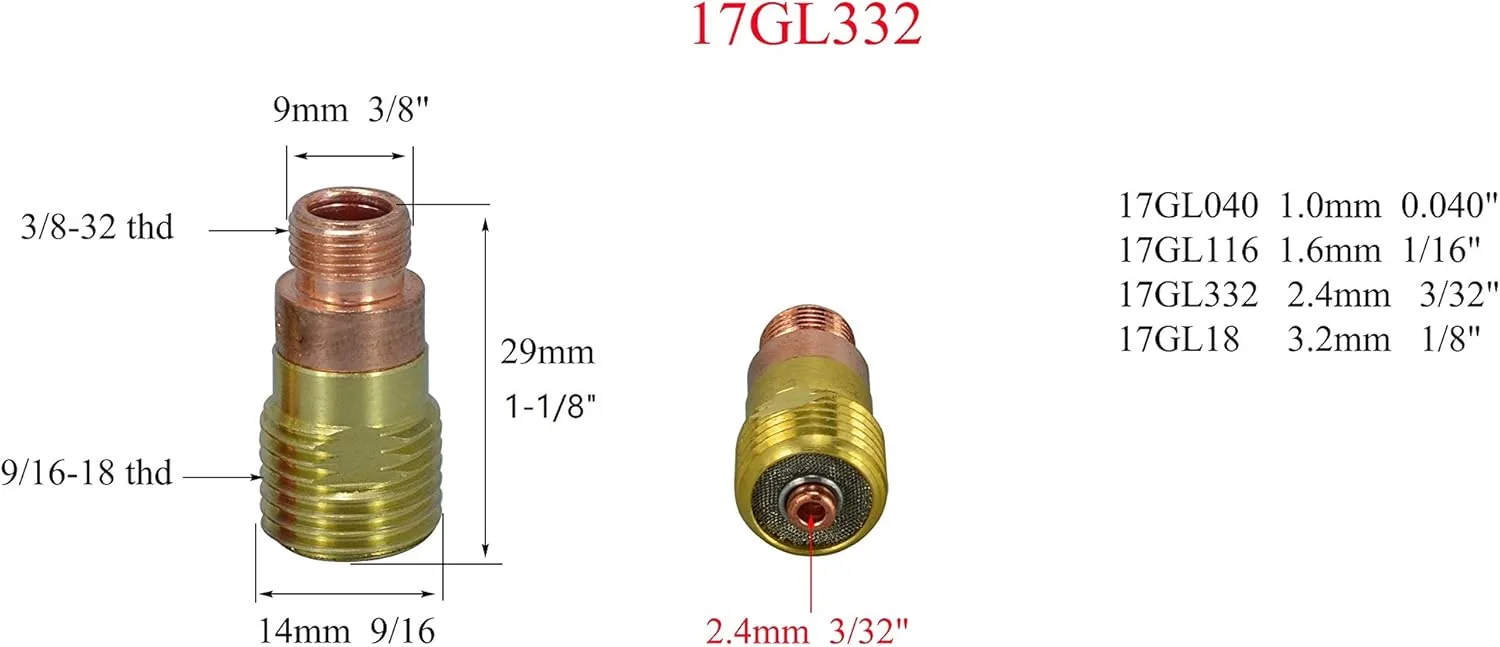

1pcs TIG Stubby Gas Lens 17GL332 ( Ø2.4mm x 29mm )

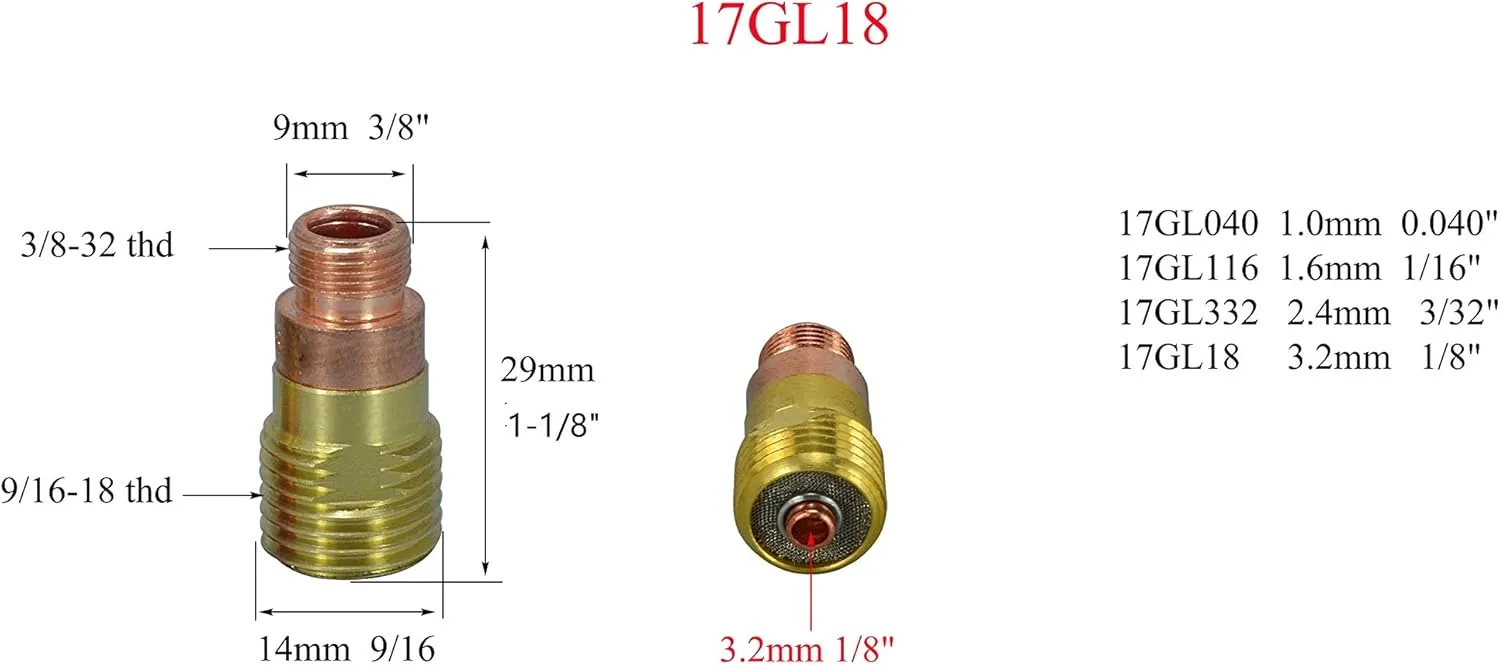

1pcs TIG Stubby Gas Lens 17GL18 ( Ø3.2mm x 29mm )

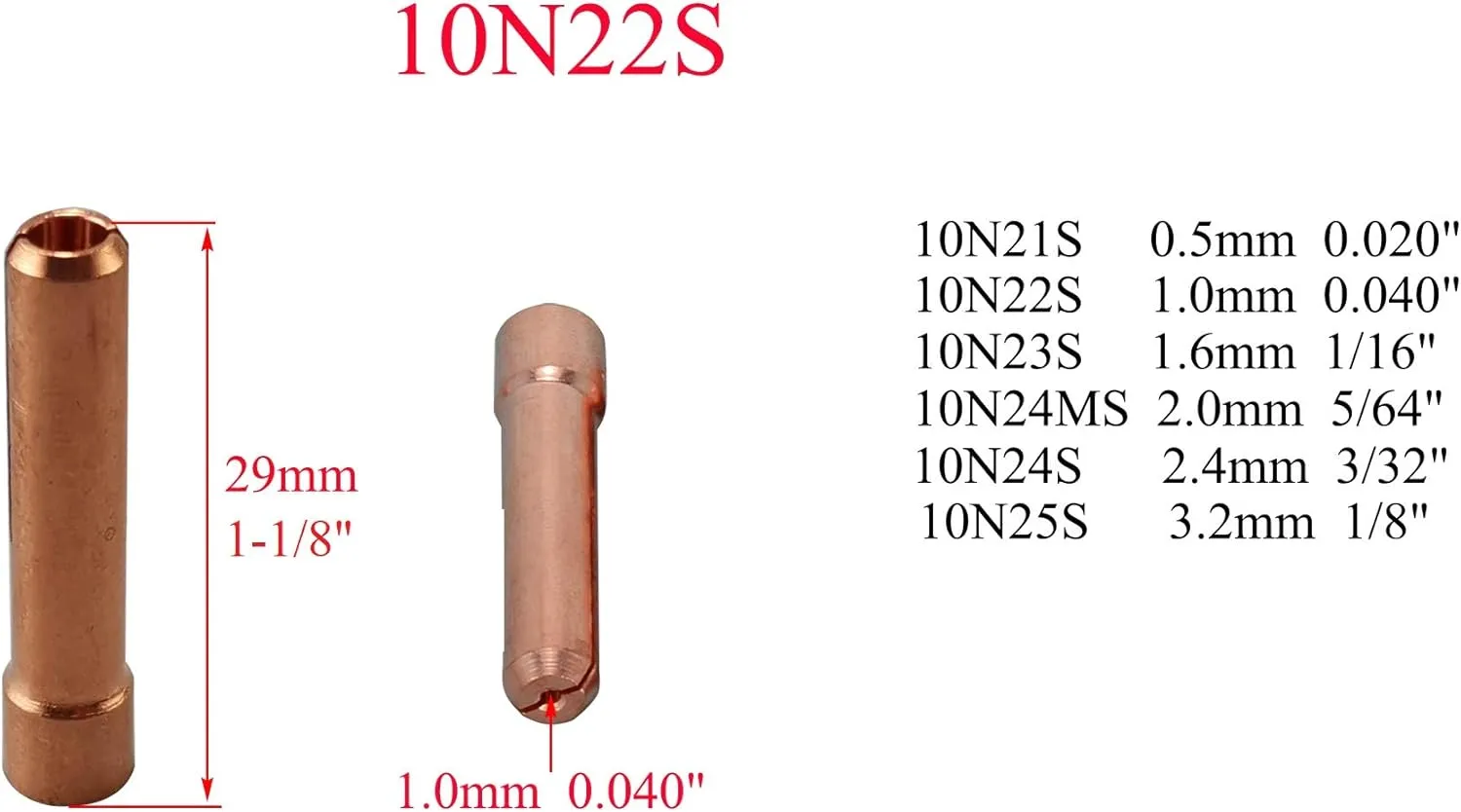

1pcs TIG Collet 10N22S ( Ø1.0mm x 29mm )

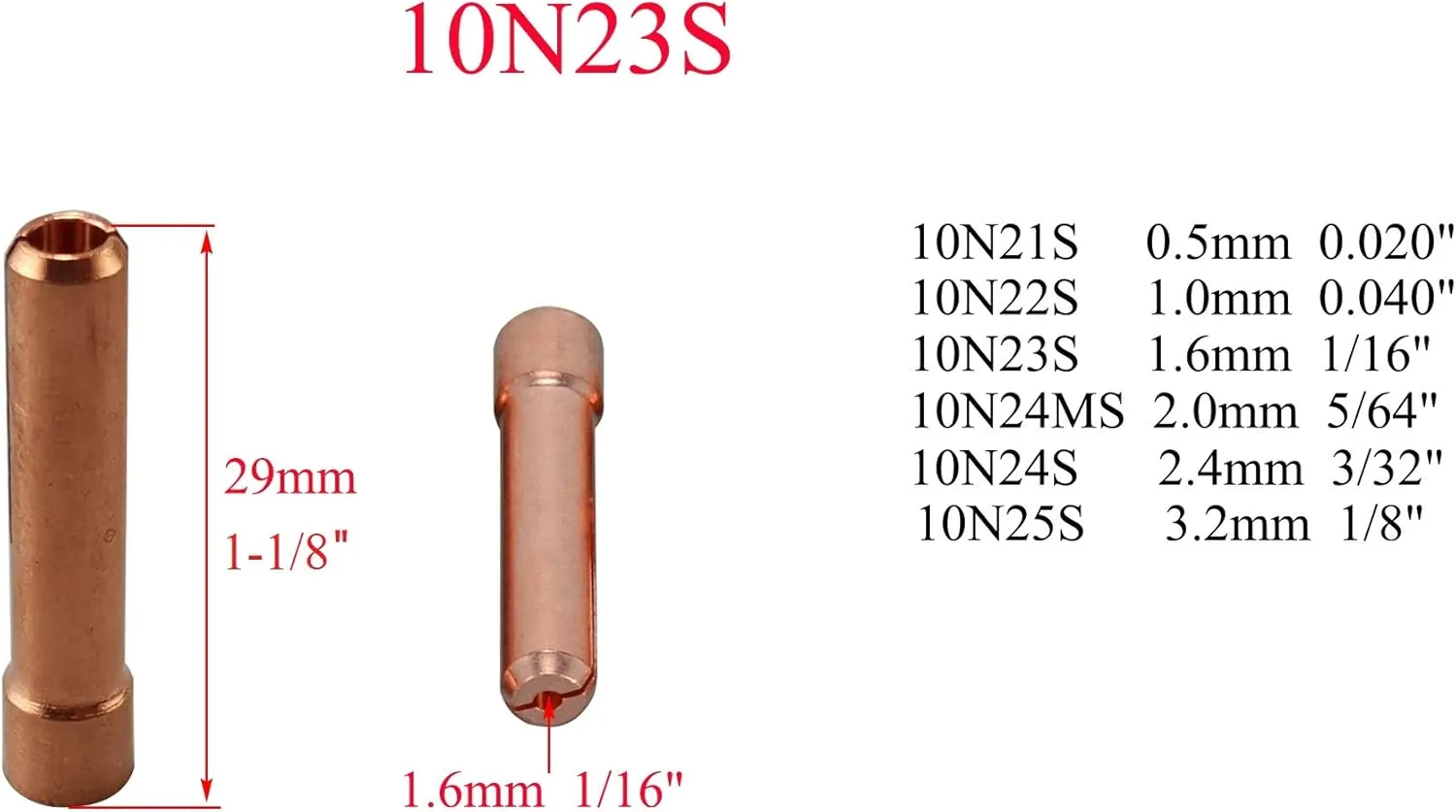

1pcs TIG Collet 10N23S( Ø1.6mm x 29mm )

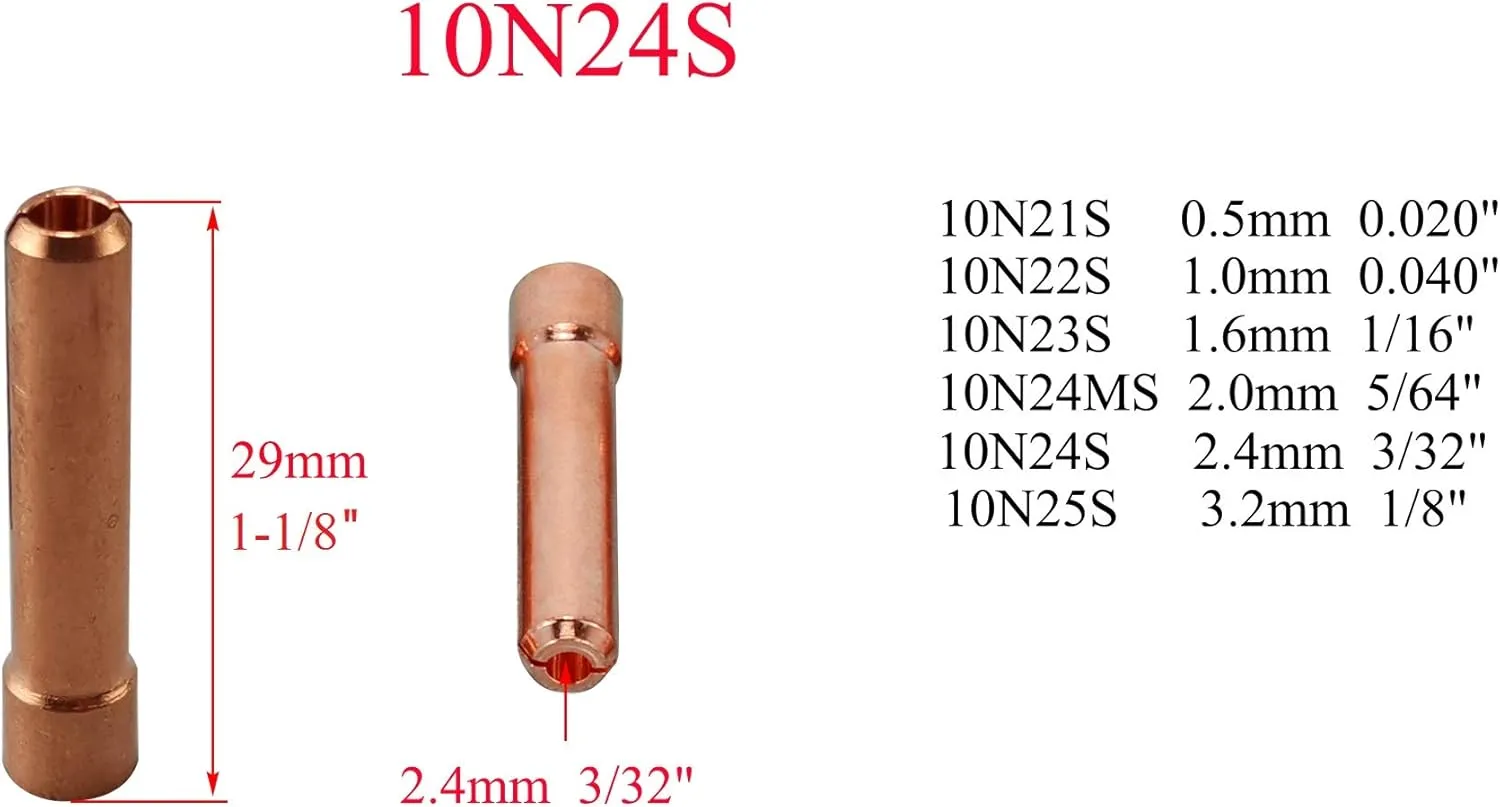

1pcs TIG Collet 10N24S ( Ø2.4mm x 29mm )
1pcs TIG Collet 10N25S ( Ø3.2mm x 29mm )
16 x Temperature Resistant O-rings
1pcs TIG Gas lens insulator 17GLG20
